The adjustable support arm for the monitor mounting can be combined with a keyboard tray

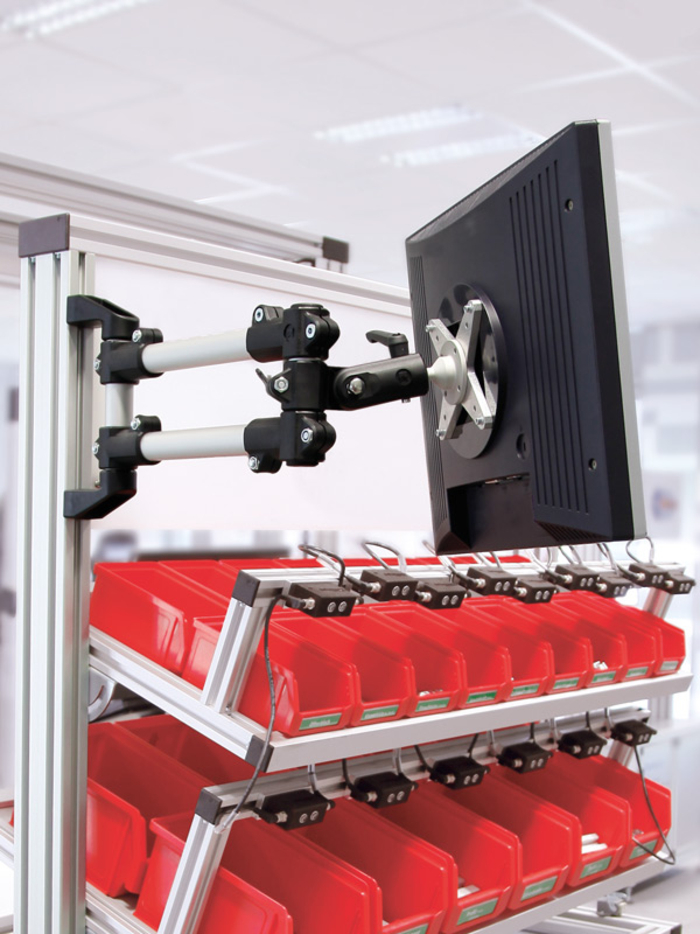

The monitor mountings from RK Rose+Krieger allow for an optimal view of the monitor or a control panel. The range of action can be increased even further by using a swivel arm. This may be useful for carrying out set-up work on machinery for example, or if the monitor is having a disruptive impact on the working environment.

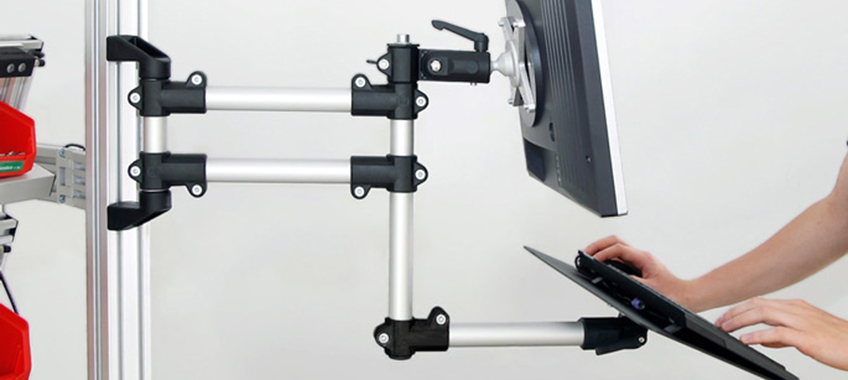

There is also the option of expanding the support arm with two support tubes (twin version) to include a sturdy keyboard tray. The modular design of the RK swivel arm/support arm system allows for varied combination options and helps to adapt workstations to the most ergonomic arrangement.

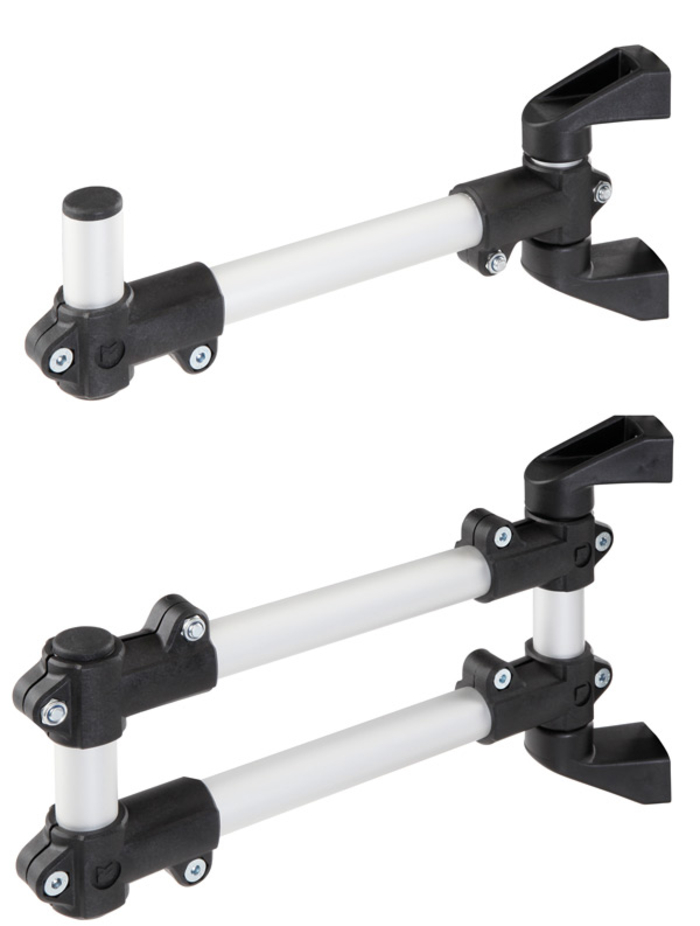

Two different support arms/swivel arms are available, based on the load to be supported (monitor weight, torque support). The basic version has one support tube for loads of up to 10 kg , and the twin version has two support tubes for loads of up to 25 kg.
If the system is expanded to include the optionally available keyboard tray, then we would recommend using a twin-version support arm with two support tubes.

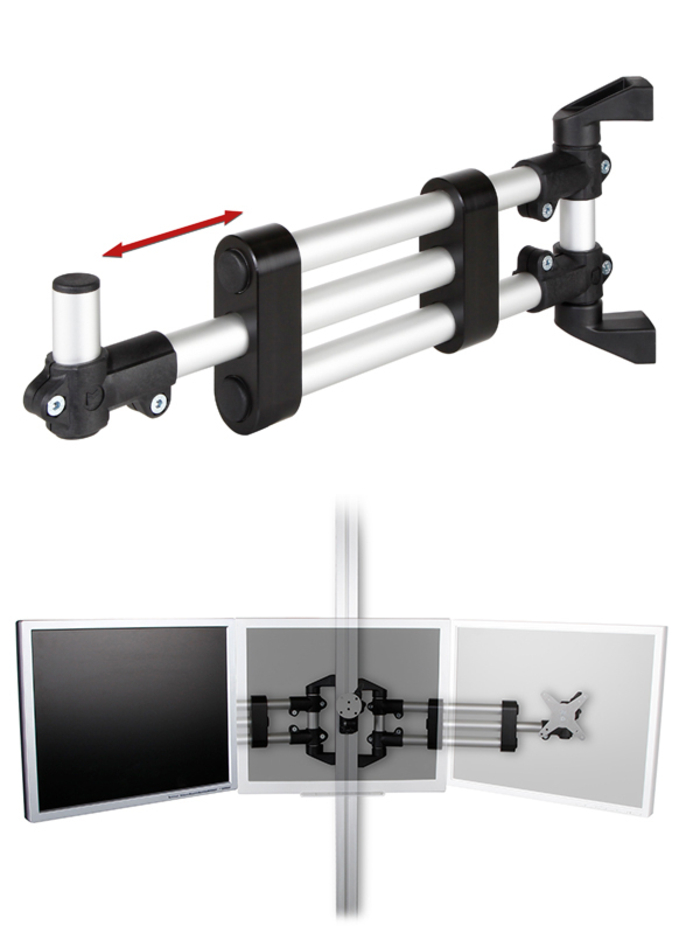

RK Rose+Krieger has expanded its support arm system for its RK monitor mounting with a telescopic support arm (basic length: 495 mm). In its extended state (720 mm), it is designed for monitors, display devices and operating terminals weighing up to 5 kg. With its new swivel arm, RK Rose+Krieger expands its combination options and enables greater ergonomic adaptation of end devices to the working environment.
For use as an individual support arm or as multiple support arm systems together in combination with RK monitor holders. This makes them ideal for use in control rooms where multiple monitors and display devices are frequently placed above or next to one other. The support arm telescope enables the quick and easy ergonomic arrangement of any number of monitors in a range of formats.
The monitors can be flexibly height-adjusted, swivelled, extended and fixed ... all without the need for tools!

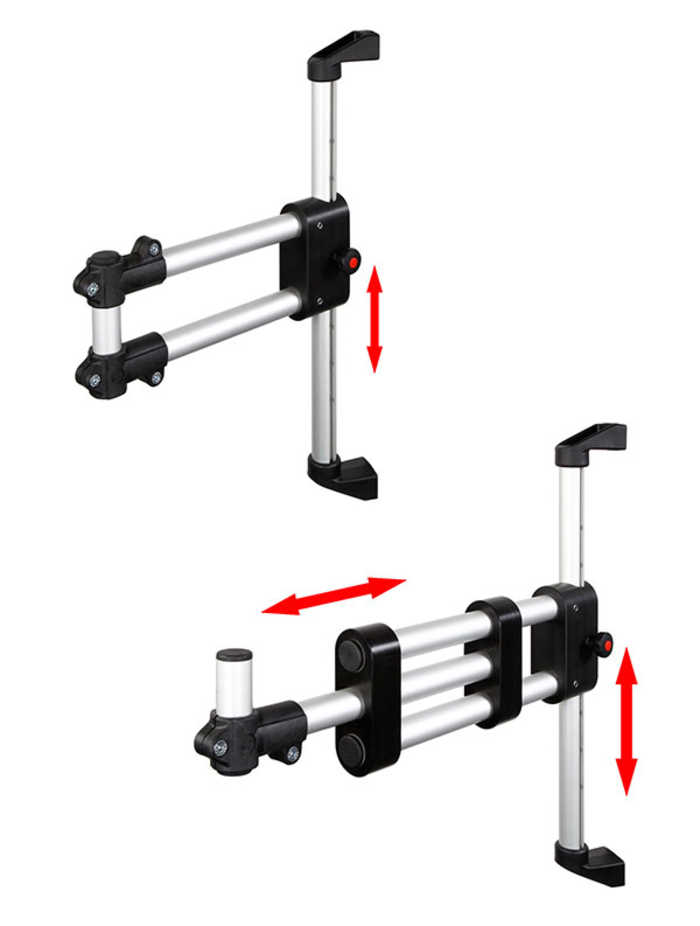

The twin and telescopic support arms are now both available in a height adjustable version. Mounted on a vertical holder, the support arms can be manually adjusted over a range of 400 mm. By simply pulling out and holding the fixing bolt, the support arm can be freely moved to the required height. On release, the fixing bolt then locks the support arm in the selected position. The height adjustment feature is particularly useful for ergonomic workstations.

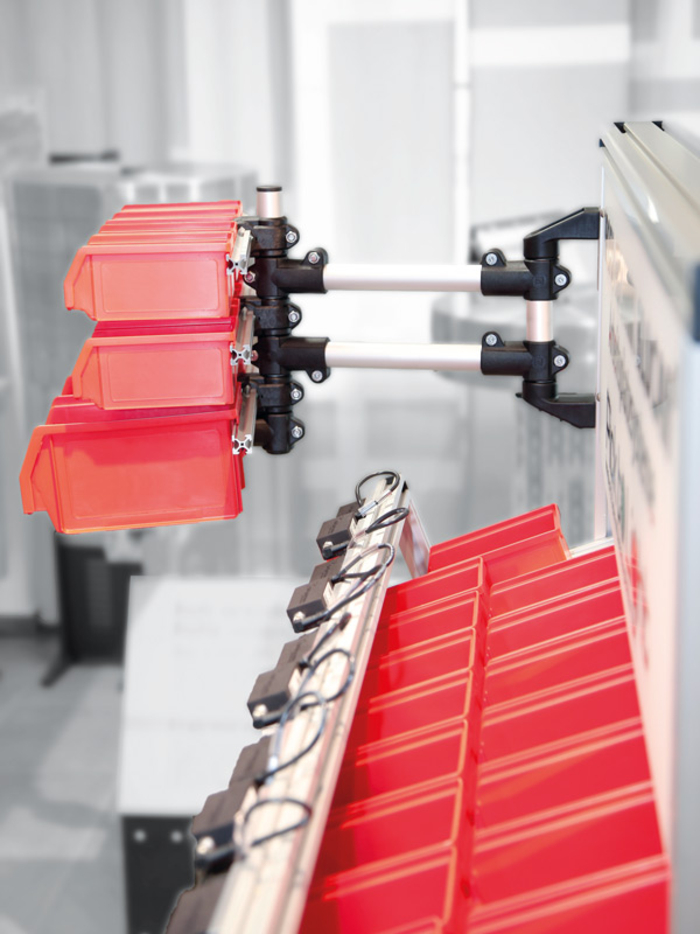

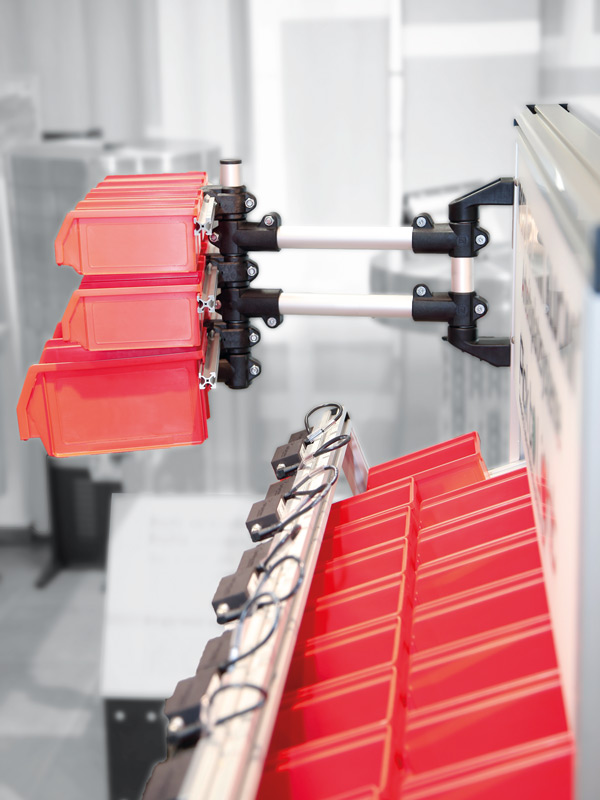

Not only can the support arms/swivel arms be used to attach monitors or control panels, they are also suitable for the ergonomic arrangement of material boxes and tool/document holders when used in modified form. The support arm system fits the standard tube connector and can be combined in any number of ways.
We would be happy to help you in the optimisation of your workstation system.
