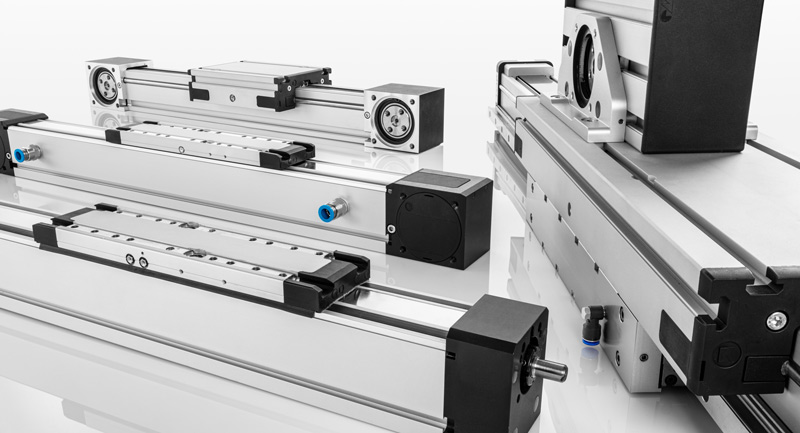

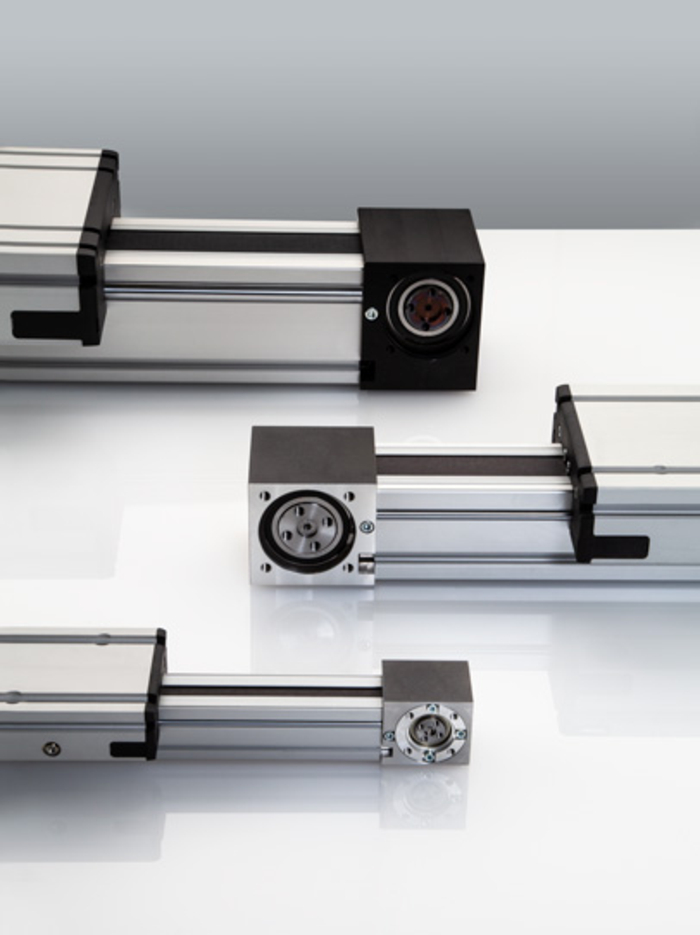

The new RK MonoLine timing belt units perfectly addition the RK DuoLine series
To complement its range of linear units for the medium load range, RK Rose+Krieger has now launched a new series with the RK MonoLine roller guides. The RK MonoLine is currently available in the popular sizes 40, 60, 80 and 120 – either with a timing-belt drive (Z) or without a drive as anti-vibration torque support (R). Further sizes are set to follow. The size 120 timing-belt-driven version can withstand loads of up to 9400 N and reaches travel speeds of up to 10 m/s, with permissible accelerations of up to 20 ms².

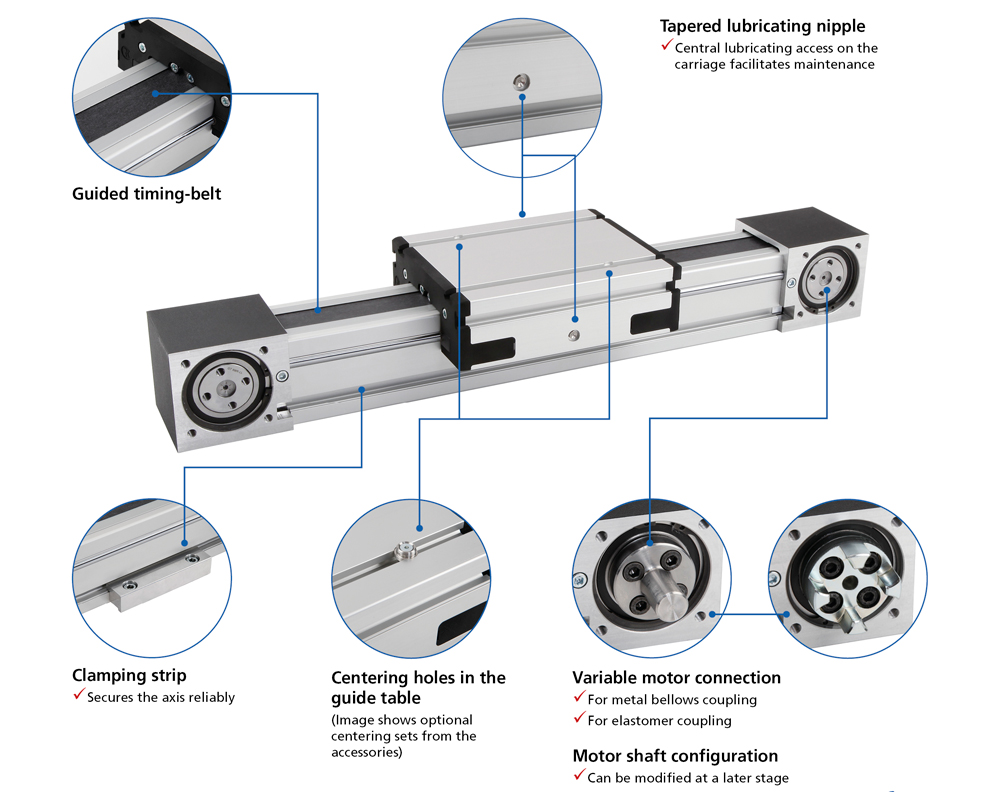

As with the timing-belt-driven linear units in the RK DuoLine range, the RK MonoLine Z also features a variable mounting system for almost all motors available on the market. The motor position no longer needs to be specified when placing an order and can be changed at a later stage. The new actuators are fitted with a timing-belt guidance system as standard. The optional clamping and slot stone bars reduce the amount of engineering required and make customisation easier. The profile slots enable maximum flexibility for the fixation of customer-specific accessories, such as drag chains and tube holders, as well as limit or proximity switches for limit switching. The payload is fixed securely using the slot stones with tapped holes available as accessories. For users this means minimal effort required in construction, reduced assembly costs and quicker assembly. Special tapered lubrication nipples on the side of the carriage facilitate lubrication of the linear units in any carriage position. It is not necessary to move the units into a particular maintenance position or to disassemble any fittings. Central lubrication speeds up maintenance and also makes it safer and simpler. The new linear actuators impress due to their smooth running and high precision when subjected to medium dynamic loads. The RK Rose+Krieger portfolio includes the RK DuoLine series for applications where high dynamic performance is demanded. The linear units with ball rail guide are available in the sizes 160/120/80/60/40 and can be supplied either with or without a drive in a timing-belt- or a spindle-driven version.
RK Rose+Krieger offers a special service to help select the right motor specification. Based on the customer's data for the specific application such as load, installation position, speed and acceleration, RK Rose+Krieger determines the necessary torque, speed and external geometric moment of inertia.

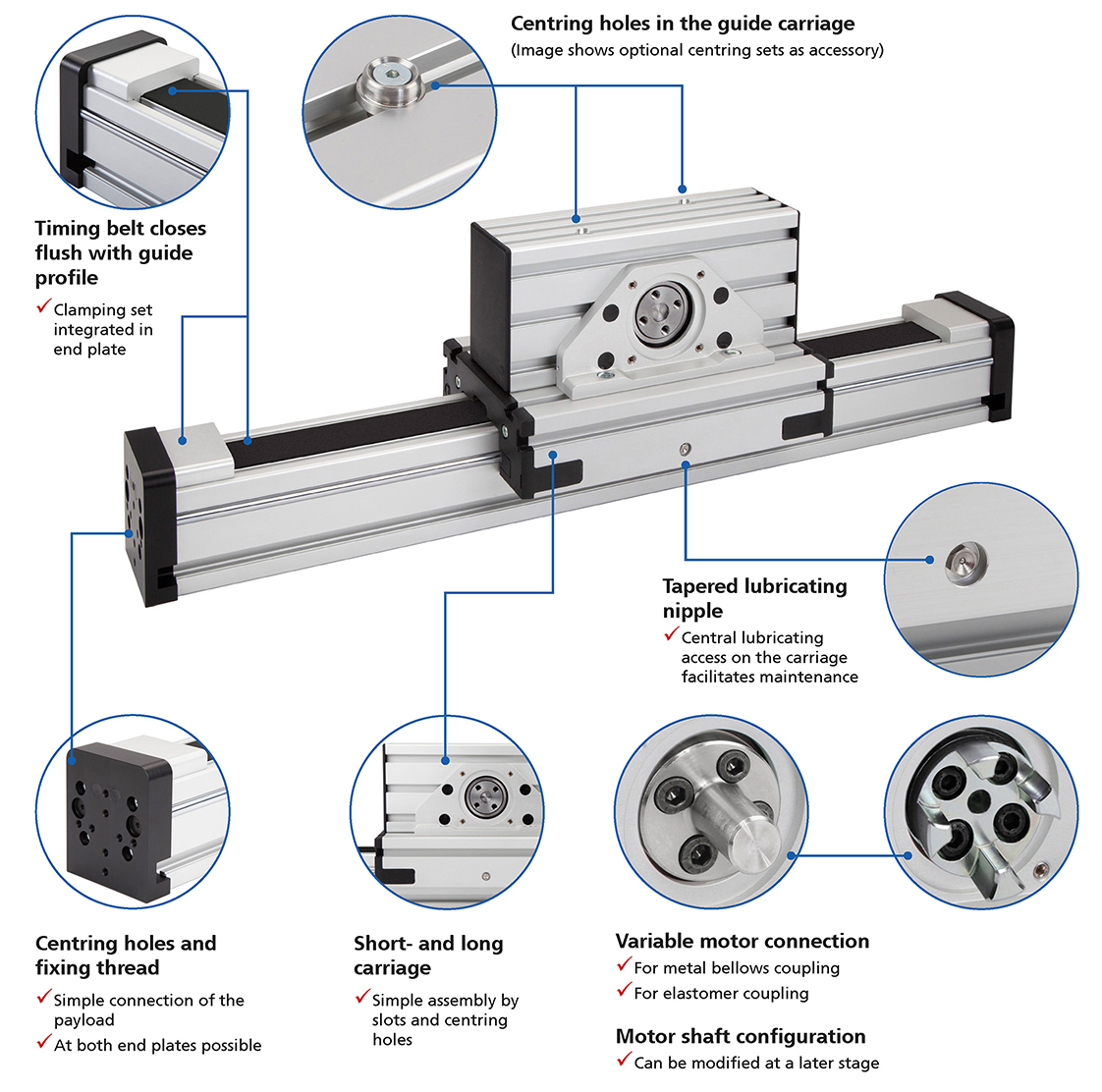

The new member of the RK Monoline product line is based on the roller guide concept of the RK MonoLine Z 80, but has a different drive concept: on the RK Monline MT, the timing belt does not circulate, but is driven in the area of the guide carriage. That is why an Omega drive is referred to. The tried-and-tested variable mounting concept allows the motor position to be changed subsequently for almost all motors available on the market. Compact dimensions facilitate high speeds and high positioning accuracy and repeatability – in particular for use as a vertical axis in a multi-axis system with travelling base profile and stationary carriage/motor. As a horizontal axis with a rated load on the carriage, on the other hand, extremely long strokes can be achieved. A further typical application is use as a moving axis.
NEW: RK MonoLine MT axles with deflection-optimized profiles in sizes 80x120 and 80x160 are now expanding the portfolio. At the same time, RK Rose+Krieger expanded the RK MonoLine MT series of linear units to include models with an integrated holding system (Safelock) to secure the load in a vertical arrangement.
