Height adjustable support arms

The new support arms offer easy manual height adjustment and positioning via a spring-loaded fixing bolt

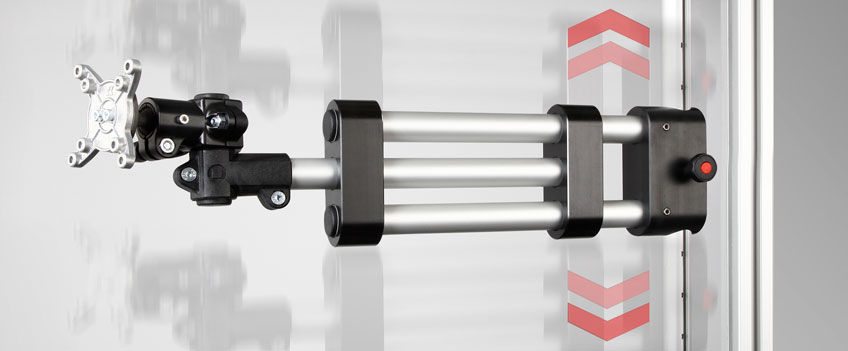

Height adjustable monitor support arms (400 mm travel)

Height adjustable monitor support arms

Easy manual height adjustment and positioning

Easy manual height adjustment and positioning via a spring-loaded fixing bolt

The connecting technology division has added two new support arm models to the RK monitor mounting systems product portfolio.
The twin and telescopic support arms are now both available in a height adjustable version. Mounted on a vertical holder, the support arms can be manually adjusted over a range of 400 mm. By simply pulling out and holding the fixing bolt, the support arm can be freely moved to the required height. On release, the fixing bolt then locks the support arm in the selected position. The height adjustment feature is particularly useful for ergonomic workstations.

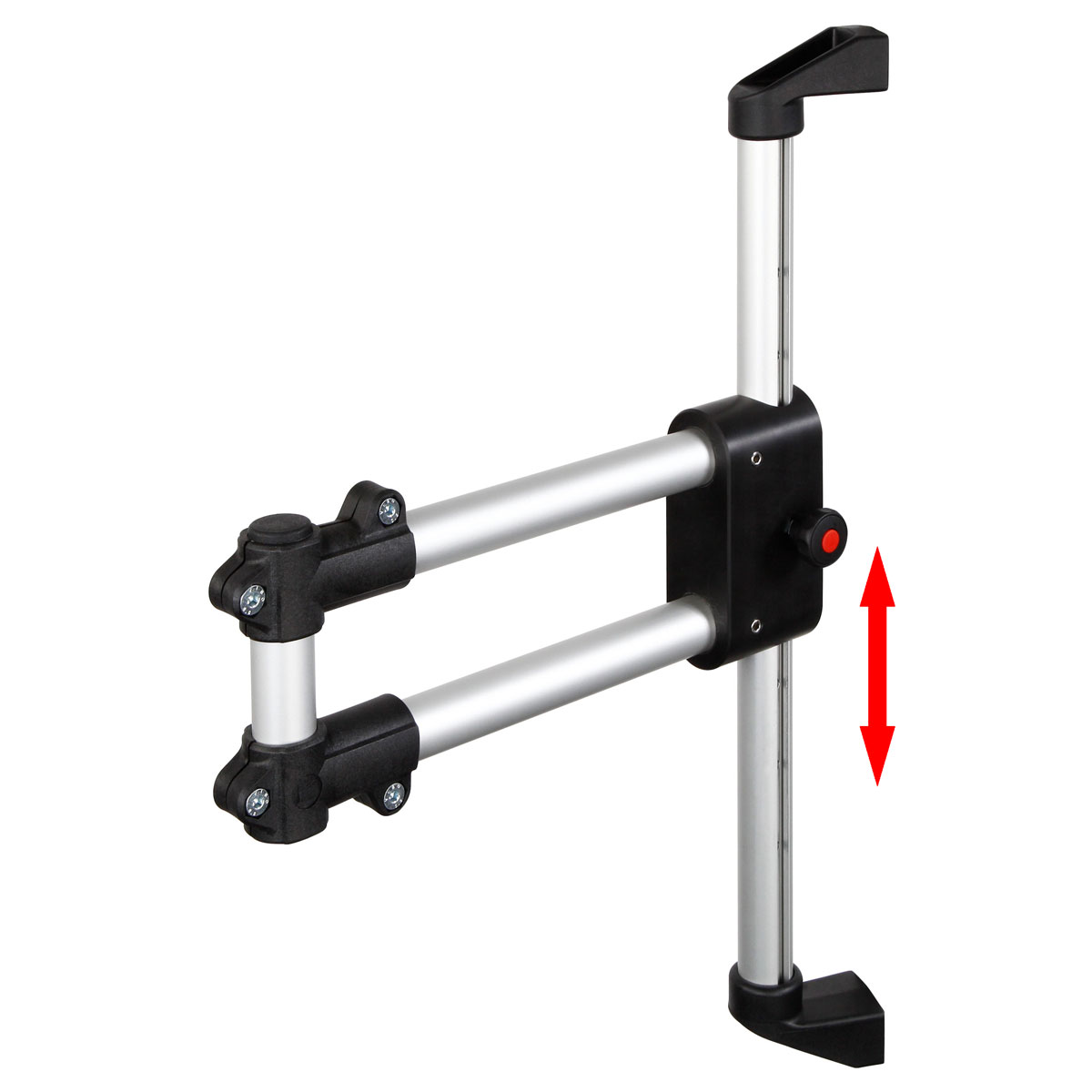

Support arm double

Support arm double

Support arm double - height adjustable

  • Travel 400 mm max. (30 mm steps)
  • max. load 10 kg
  • Toolless manual adjustment
  • Safe locking by a spring-loaded stop bolt

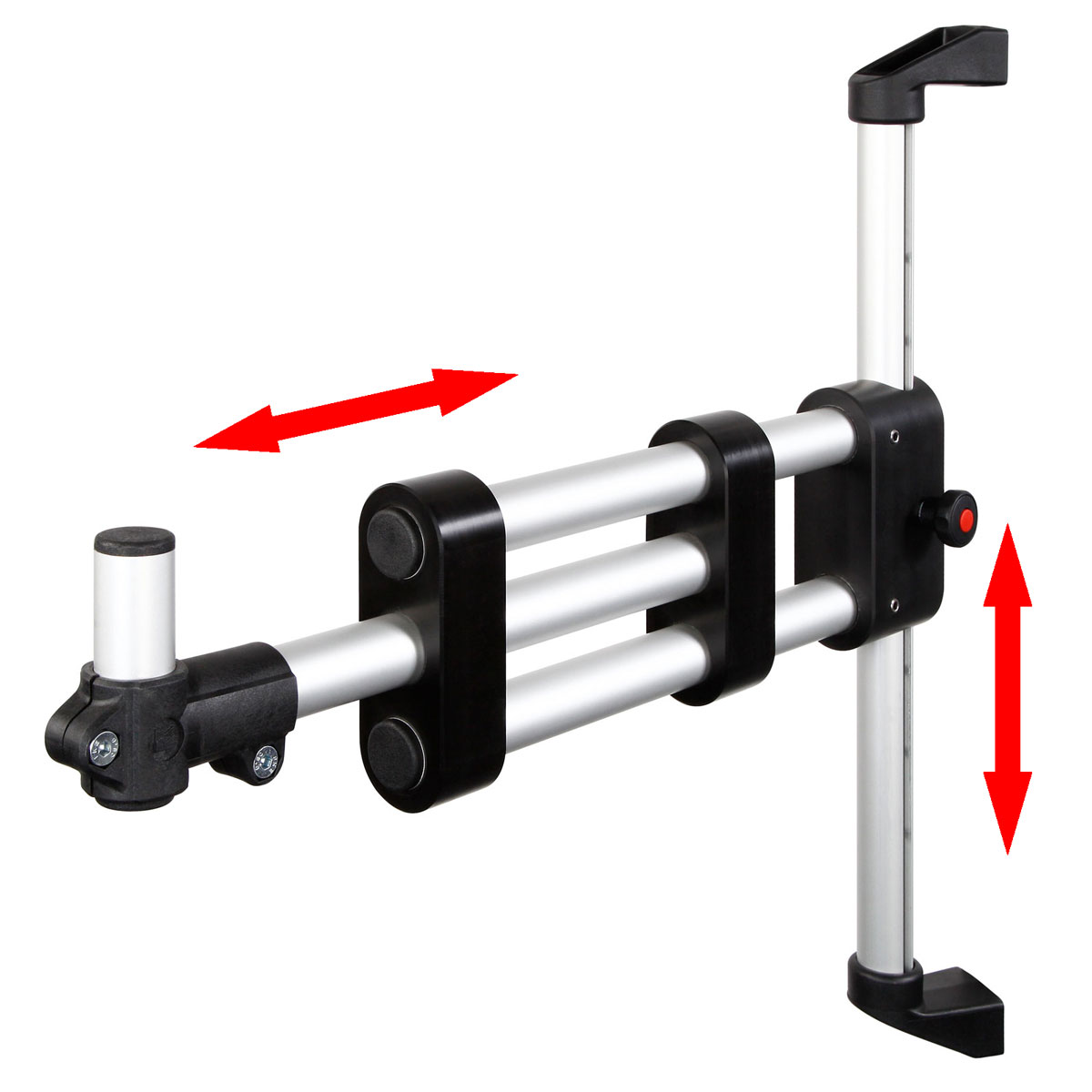

    Support arm telescope

    Support arm telescope

    Support arm telescope - height adjustable

    •     Travel 400 mm max. (30 mm steps)
    •     max. load 5 kg
    •     Toolless manual adjustment
    •     Safe locking by a spring-loaded stop bolt
