Monitor mounting – high-strength, flexible and individually adaptable

RK monitor mountings stand up to the tough demands of day-to-day industrial use

Monitor mountings for industrial applications

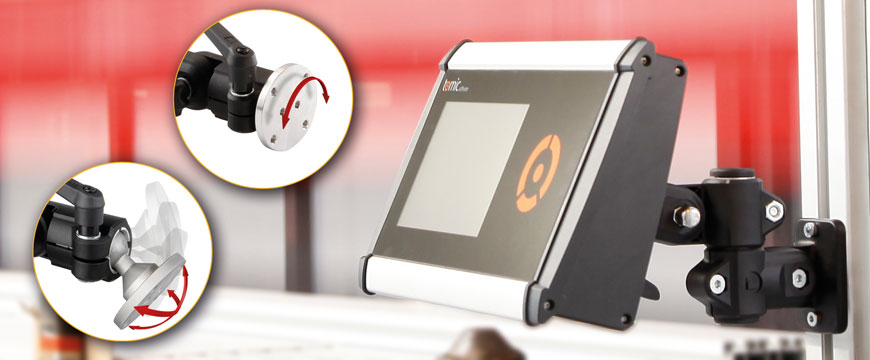

The monitor mounting from RK Rose+Krieger is a high-strength and flexibly mountable solution for the fixing and ergonomic adjustment of monitors and touch panels in industrial adjustments. The vibration-proof and lockable version with tilt adjustment in 15° increments is suitable for monitors, control panels and touch panels up to 25 kg (static) and offers a wide range of adjustment options: for example, it allows the screen to be turned, tilted and swivelled and – if fixed to a round or square tube system – height-adjusted without tools. The new version of the RK monitor mounting with ball joint offers even greater flexibility for the adjustment of industrial monitors. The joint enables a pivoting range of 60° with a load of up to max. 10 kg (static). A special coating on the ball joint and a clamping mechanism that is registered as a utility model guarantee the static friction required for reliable processes when the clamping lever is tightened.

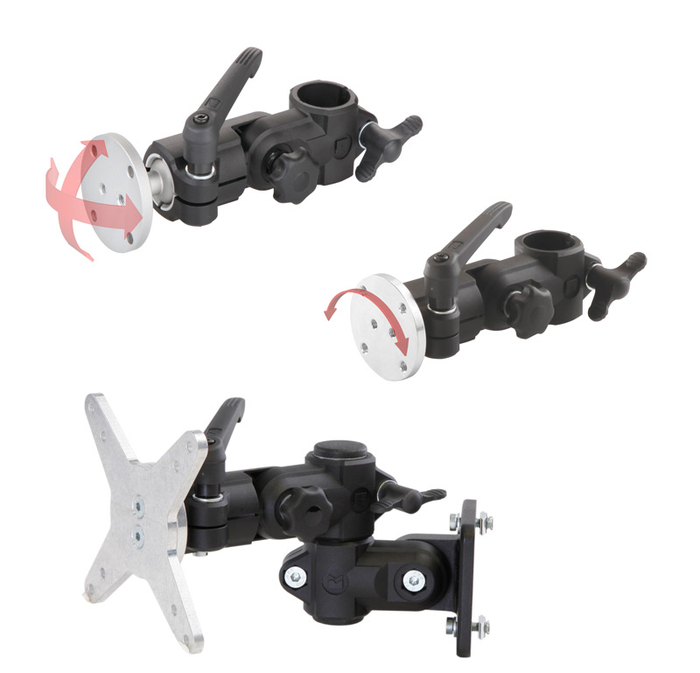

The monitor mounting is available in a wide range of different versions

Monitor mounting, with a choice of universal or VESA mount

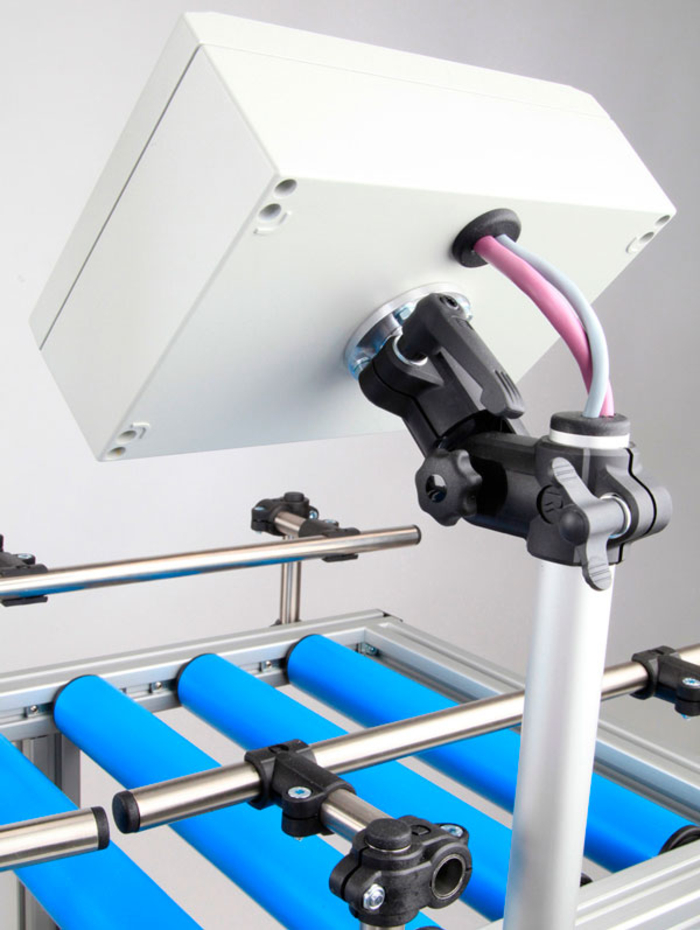

With different fitting dimensions for end devices and a choice of mounting options, the RK monitor mounting offers maximum flexibility: users can choose between a cross-shaped connecting plate as per VESA Standard 75/100 – i.e. with a 75 x 75 mm or 100 x 100 mm mounting hole pattern – or a round aluminium universal mounting surface. The monitor mounting is compatible with RK connecting technology and the BLOCAN® aluminium profile system, although it can also be mounted on any other tube or profile or directly wall-mounted. The screws and slot stones required for fixing to an RK profile system are included in the scope of delivery.

Overview monitor mountings:

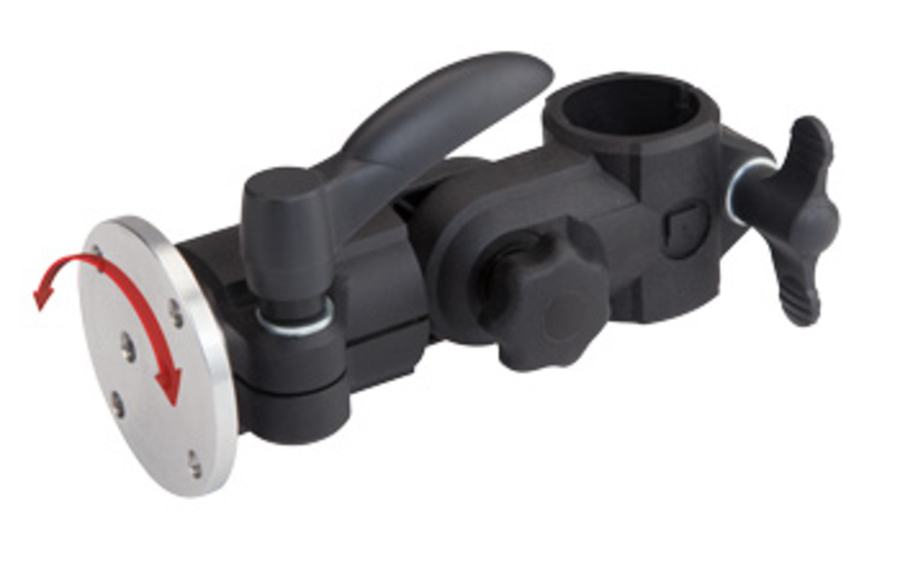

Rotary flange monitor mounting

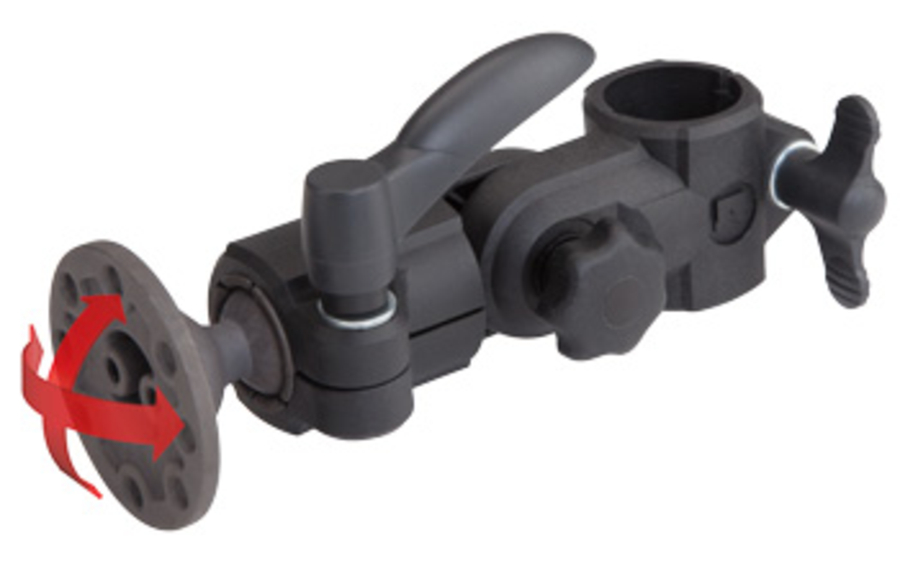

Ball joint monitor mounting

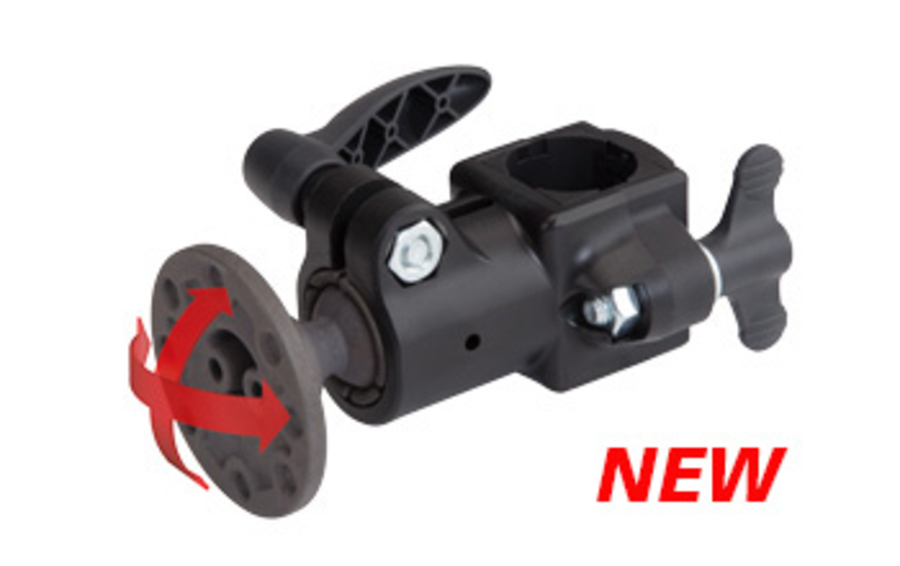

NEW: Monitor mounting compact

Advantages of the RK monitor mounting at a glance:

Choice of user-specific or VESA-standard monitor connection
High-strength materials ensure a long-term load-bearing capacity of up to 25 kg (static), for reliable processes, in the case of ball joint version up to 10 kg (static)
Highly ergonomic thanks to personalised height adjustment
Optimum adjustment of the field of vision thanks to side-turning
Vibration-proof locking in 15° increments or 60° pivoting range (in the case of ball joint version)
Pivoting option enables portrait or landscape monitor format
Connects to aluminium profile and thus also to the machine frame using slot stones
Universal mounting holes facilitate simple wall mounting

Find out more »

Monitor mounting animation:

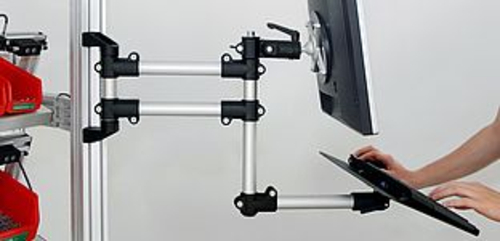

The support arm can be combined with the RK monitor mounting, thereby increasing the range of action

Support arms / swivel arms for monitor mountings

The monitor mountings from RK Rose+Krieger allow for an optimal view of the monitor or a control panel. The range of action can be increased even further using a swivel arm. Two different support arms / swivel arms are available, based on the load to be supported (monitor weight, torque support). The "basic" version has one support tube for loads of up to 10 kg or alternatively users can choose the "double" version; with two support tubes for loads up to 25 kg.
