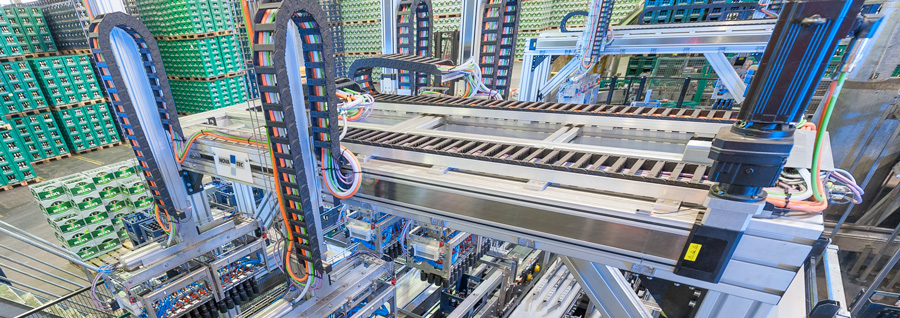

Case studies

Mechanical components – practical applications

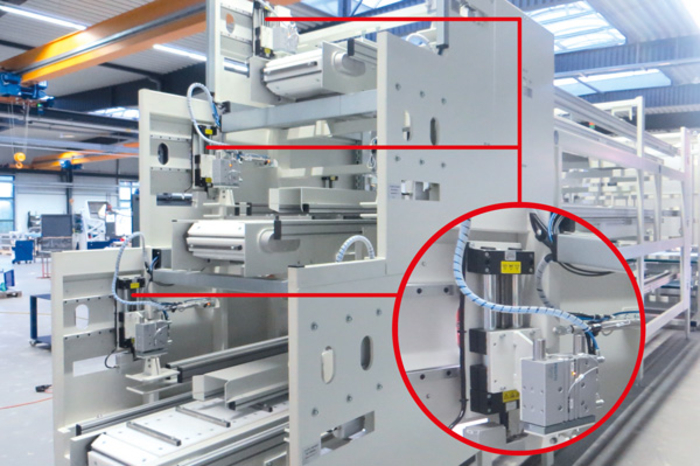

Automated format adjustment

Automated format adjustment

Automated format adjustment with RK linear actuators and actuators from Lenord+Bauer

  • With a range of different adjustment points, frequent product changeovers and small batch sizes, the new construction of packaging machines and production lines is the perfect opportunity to plan and network automated format adjustment solutions.

  • EP(X) twin-tube linear actuator for supporting high torques
  • The RK Rose+Krieger linear actuator modular system and the Lenord+Bauer actuators make automation quick and easy to achieve.
Find out more »
industrial stairs and working platforms

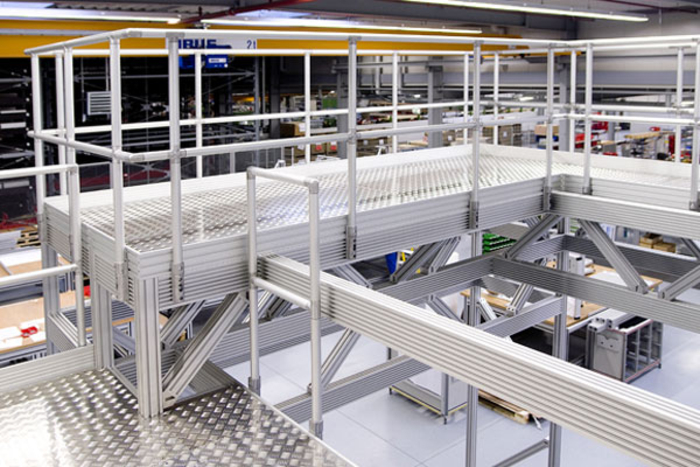

ITAS – industrial stairs and working platforms

ITAS – industrial stairs and working platforms

  • Individual adaptation of working platform to a specific machine according to customer specifications
  • A flexible railing system allows easy adaptation to changing requirements
  • Treadway surfaces selected according to customer specification and combined with standard RK components
Find out more »

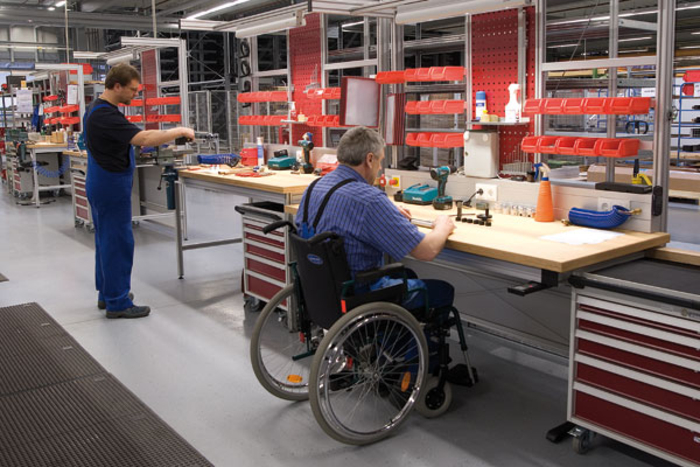

Work tables

Work tables with static or motorised height adjustment, tailored to your individual requirements

RK Easywork – workplace systems

  • Static tables through to motorised standing or sitting workstations
  • Products can be customised to suit individual workplace requirements
  • Comprehensive range of accessories
  • Online configurator – the easiest way to create your workplace system
Find out more »

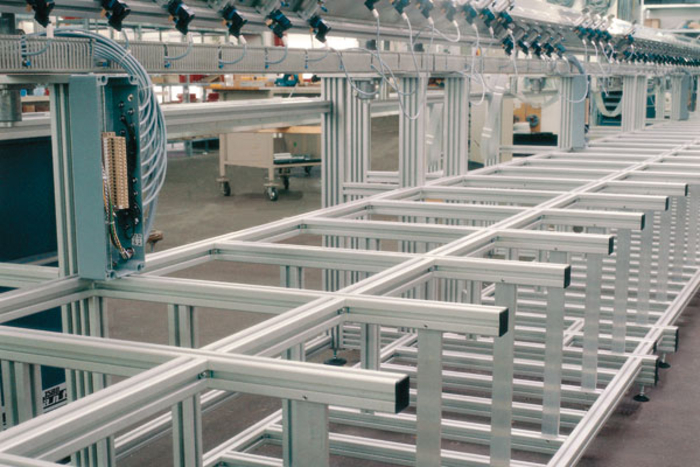

Individual frames from our aluminium profile system

Individual frames from our aluminium profile system

Machine frames

  • Frames for machinery, systems, equipment and many more.
  • A flexible aluminium profile system ensures a stable and adaptable base frame for your system
  • Simple connection of machine components via profile slots
  • Additional optional extras available (milled slots, holders, adapters)
  • Compatible with RK tube connectors and linear units

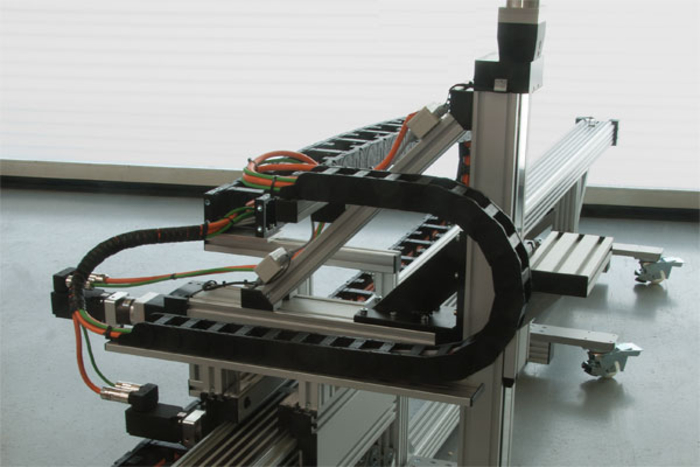

Everything from a single source – linear units, profile systems, protection systems, tube connectors

Everything from a single source – linear units, profile systems, protection systems, tube connectors

Multiple axis handling system with protective housing

  • 3-axis handling system comprising more than 80% RK components
  • Design of linear components (linear actuators, controls, motors, adapters) by RK technicians
  • Base frame from the BLOCAN profile system
  • Subsequent ring-fencing of danger zone using the RK safety guard system
  • Installation of control desk using RK tube connectors ( support arm system )

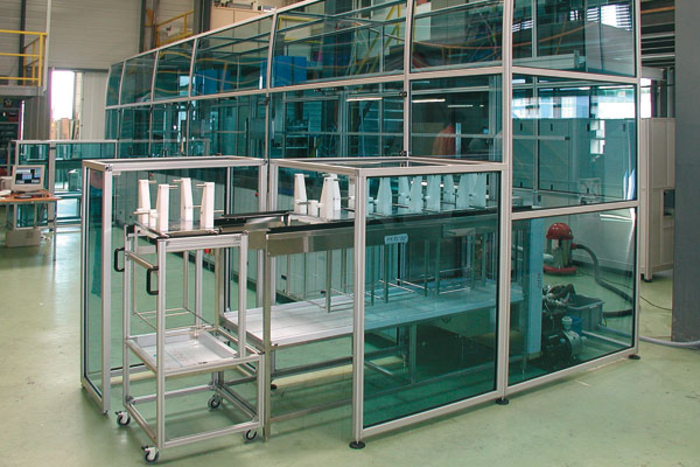

Complete protective housing for production lines according to customer specification

Complete protective housing for production lines according to customer specification

Machine housing

  • Encapsulation of individual production lines
  • Optimum adaptation to on-site conditions thanks to flexible aluminium profile system
  • Easy to dismantle panels (e.g. for maintenance work)
  • Design, drawings, engineering of special elements and installation by Phoenix Mecano
BLOCAN aluminium profile system, linear timing-belt/rack units as system solution

BLOCAN aluminium profile system, linear timing-belt/rack units as system solution

Profile substructure and linear technology for waterjet cutters

  • Development of complete system in collaboration with the customer
  • Based on a flexible and stable base frame made of aluminium profiles
  • Cutting head adjustment via RK linear units , which are also built to withstand unfavourable environmental conditions
  • Special mounts and adapters designed and manufactured by RK Rose+Krieger
  • Complete pre-assembly of base frame and linear technology carried out at RK Rose+Krieger
  • Final installation with control technology, cutting system and machine panelling is undertaken by the customer

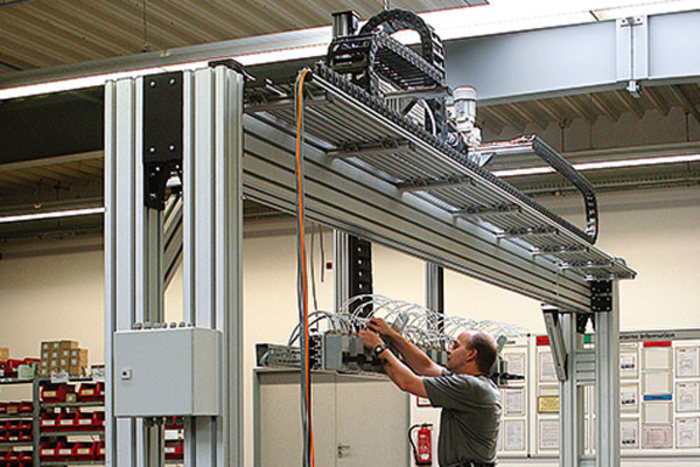

Heavy duty linear unit: design, planning, installation and commissioning of components

Heavy duty linear unit: design, planning, installation and commissioning of components

Heavy duty linear unit, portal system strictly in accordance with customer requirements

  • Linear unit for heavy loads from the RK modular system
  • BLOCAN aluminium heavy duty profile as base frame from the RK standard range
  • Design and planning consultations with customers enable us to work out possible solutions together
  • First drafts and quotations by product consultant
  • Design and planning by our technical order processing team
  • Manufacture and installation by RK experts at our company headquarters
  • Installation and commissioning by a regional system partner

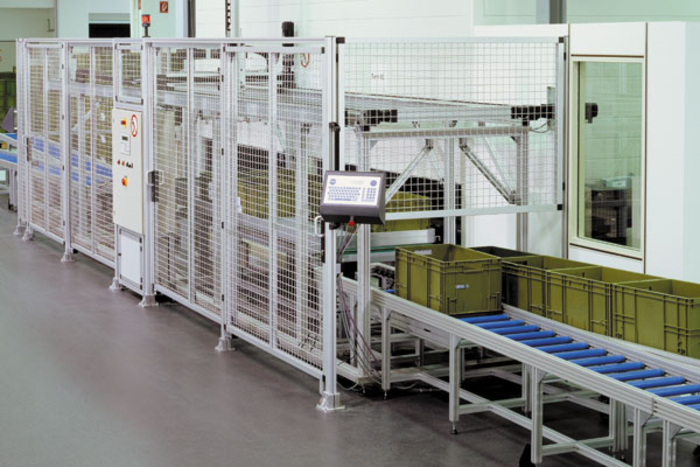

Handling system comprising linear units, aluminium profile system and safety guard system

Handling system comprising linear units, aluminium profile system and safety guard system

Logistics plant with linear and profile technology (safty guard)

  • Incoming transfer unit for a warehouse system
  • Product feeding is carried out by a roller conveyor made of aluminium profiles
  • A multiple axis system made of RK linear components takes over and forwards the products
  • The system is protected by a safety guard made of aluminium profiles
  • The entire system was designed and realised in collaboration with RK Rose+Krieger
